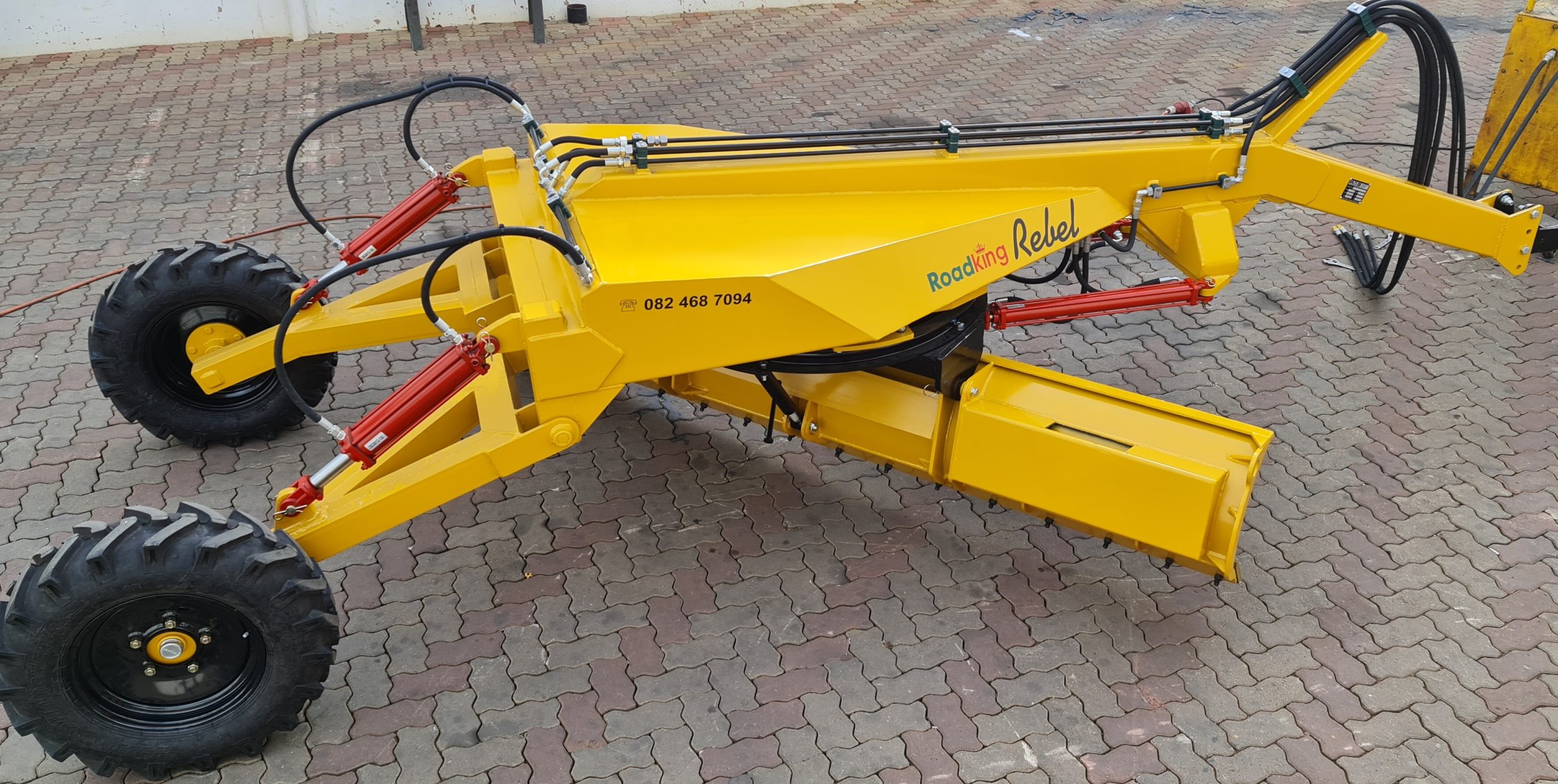

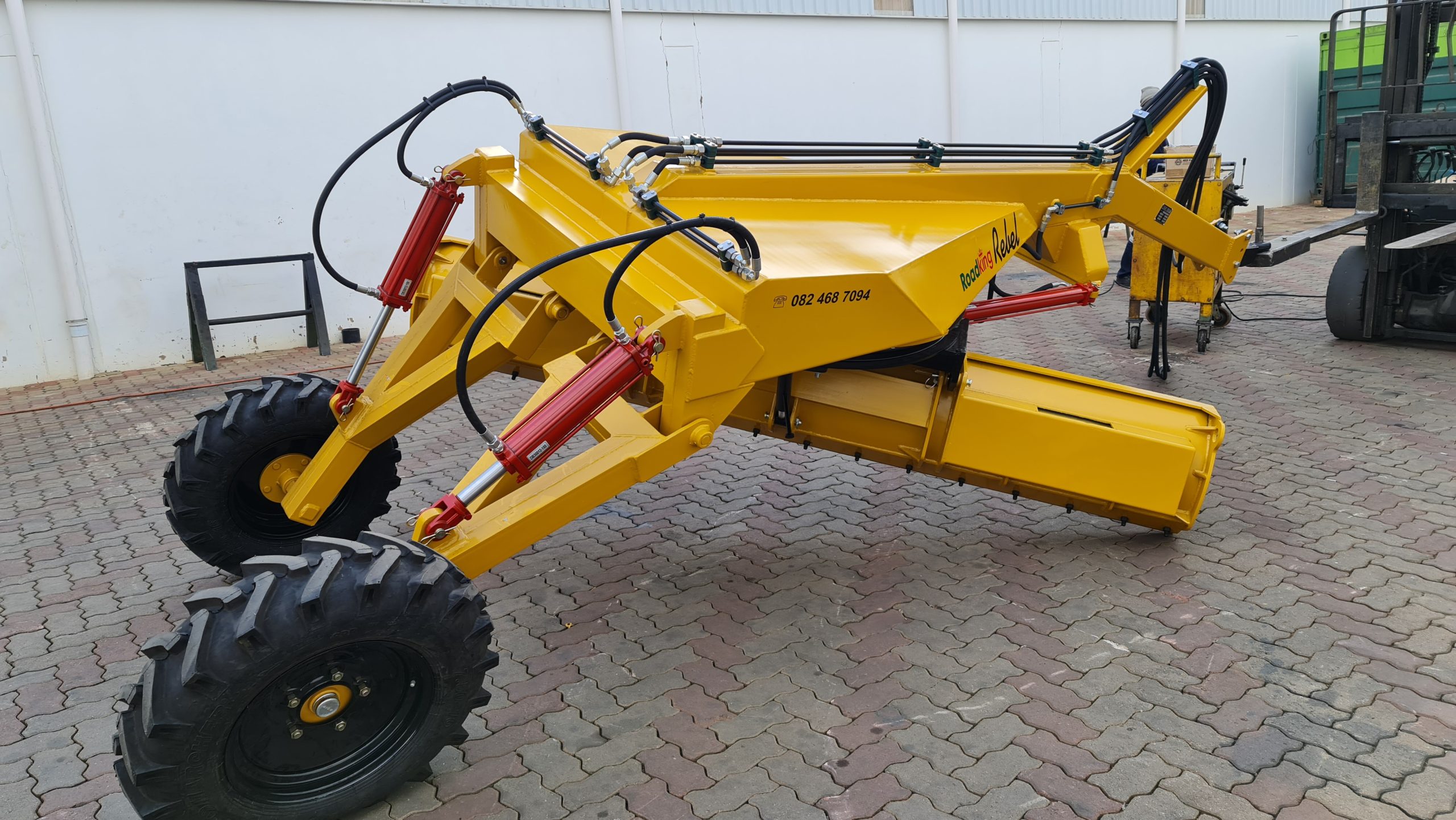

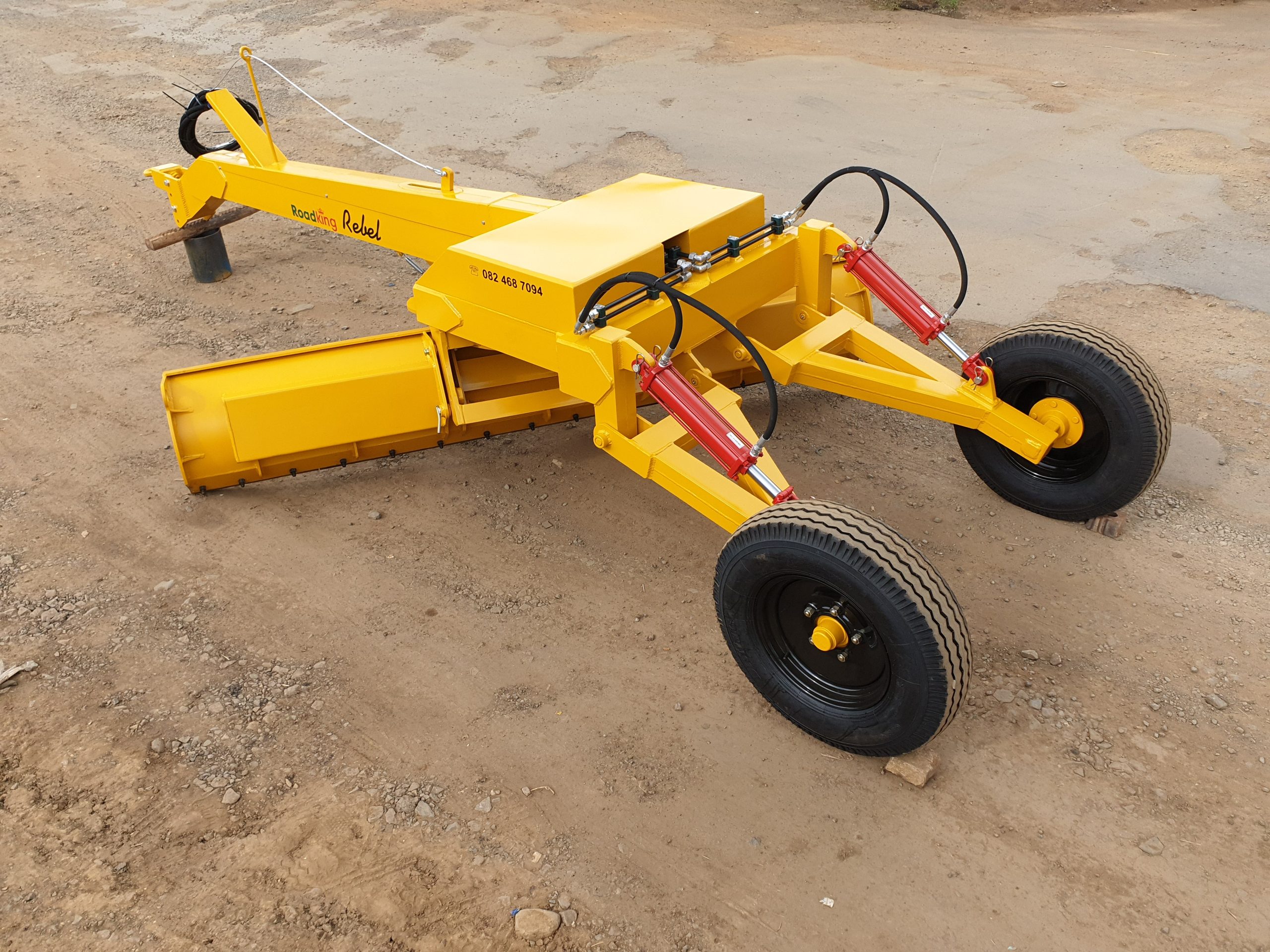

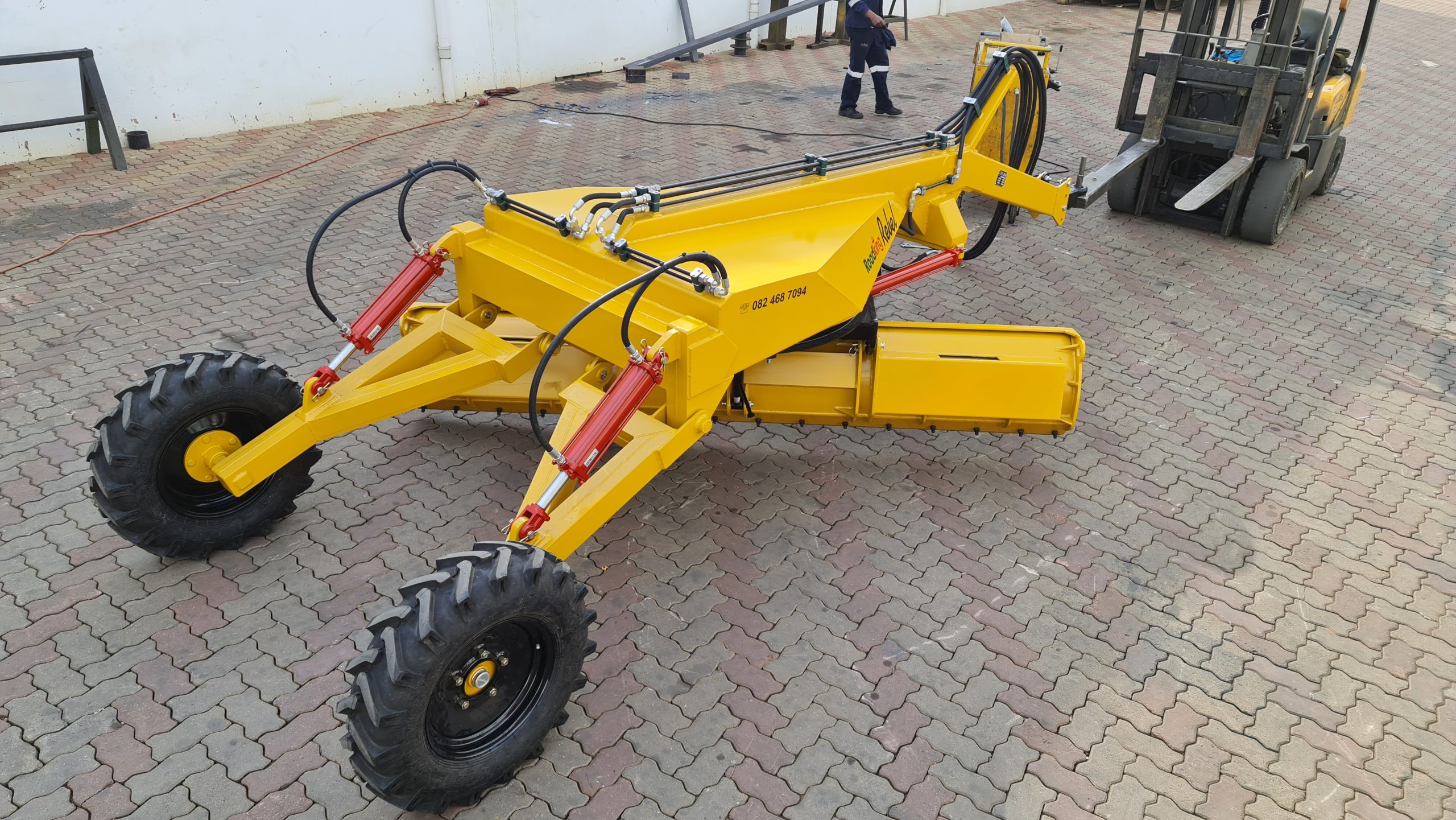

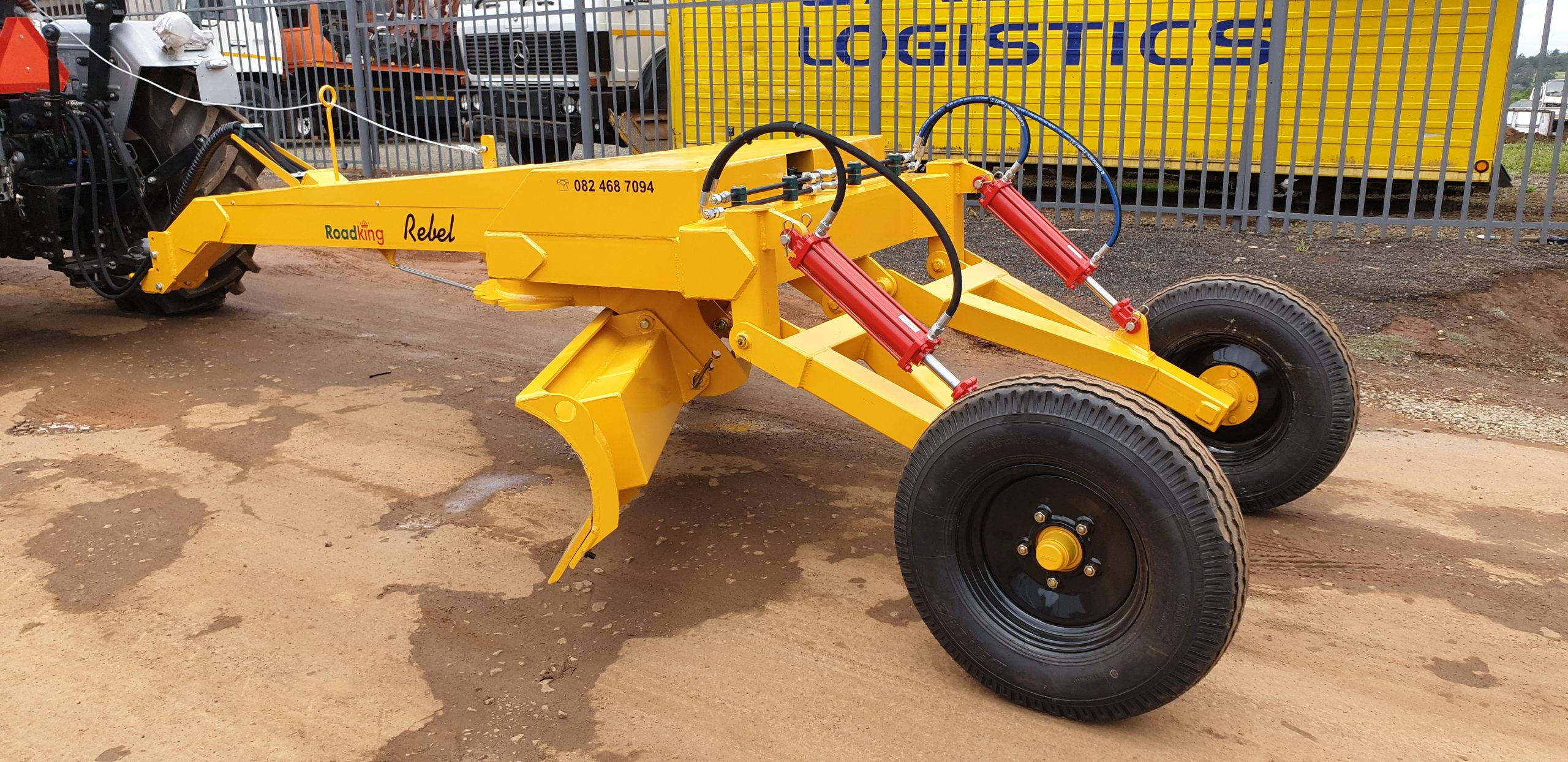

Roadking Rebel
Max Operating Mass: 1950 kg
Width of Blades: 3000 mm
Depth of Blades: 520 mm
Overall Height: 1150 mm
Min Travelling Width: 2400 mm (Blade on) 1800 (Blade off)
Max Width: 3000 mm
Overall Length: 5550 mm
About Rebel
The All New Rebel is unique in its class with its ability to adjust its blade pitch attitude as well as rotate and tilt and is ideal for the effective construction of firebreaks, contouring, mitre drain production and the maintenance and development of agricultural road infrastructure.
These important abilities places the Rebel firmly in the forefront in its class. Optional 3.2 metre blade lengths available on request.
This road grader is that and more

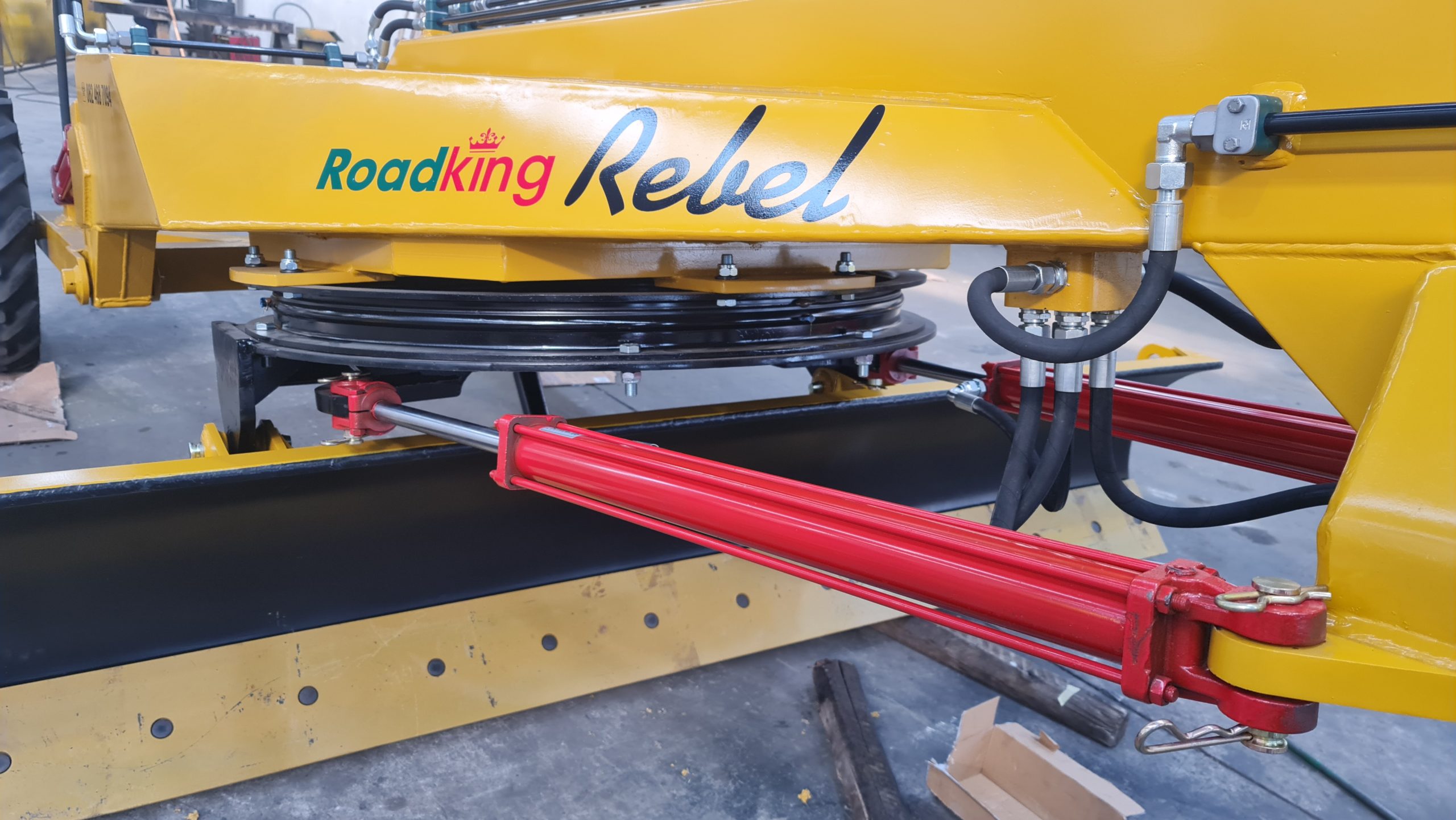

Armed with the latest in advanced mouldboard design features, including a full bearing rotating table this champion contender for medium weight industrial grade economical grading solutions also comes standard with a 3000mm mouldboard and 100% hydraulic lift and tilt operation.
Our latest model ROADKING REBEL has a wet mass of 1950 Kgs under full load and is designed for the farmer who demands a low cost , high speed solution to his road building and maintenance program.
Recommended for best use with a 4WD tractor with a power rating of 50-78 Kw.
MAINFRAME CONSTRUCTION: Section MS boxed frame arched over blade to rear wheels with twin ballast chambers

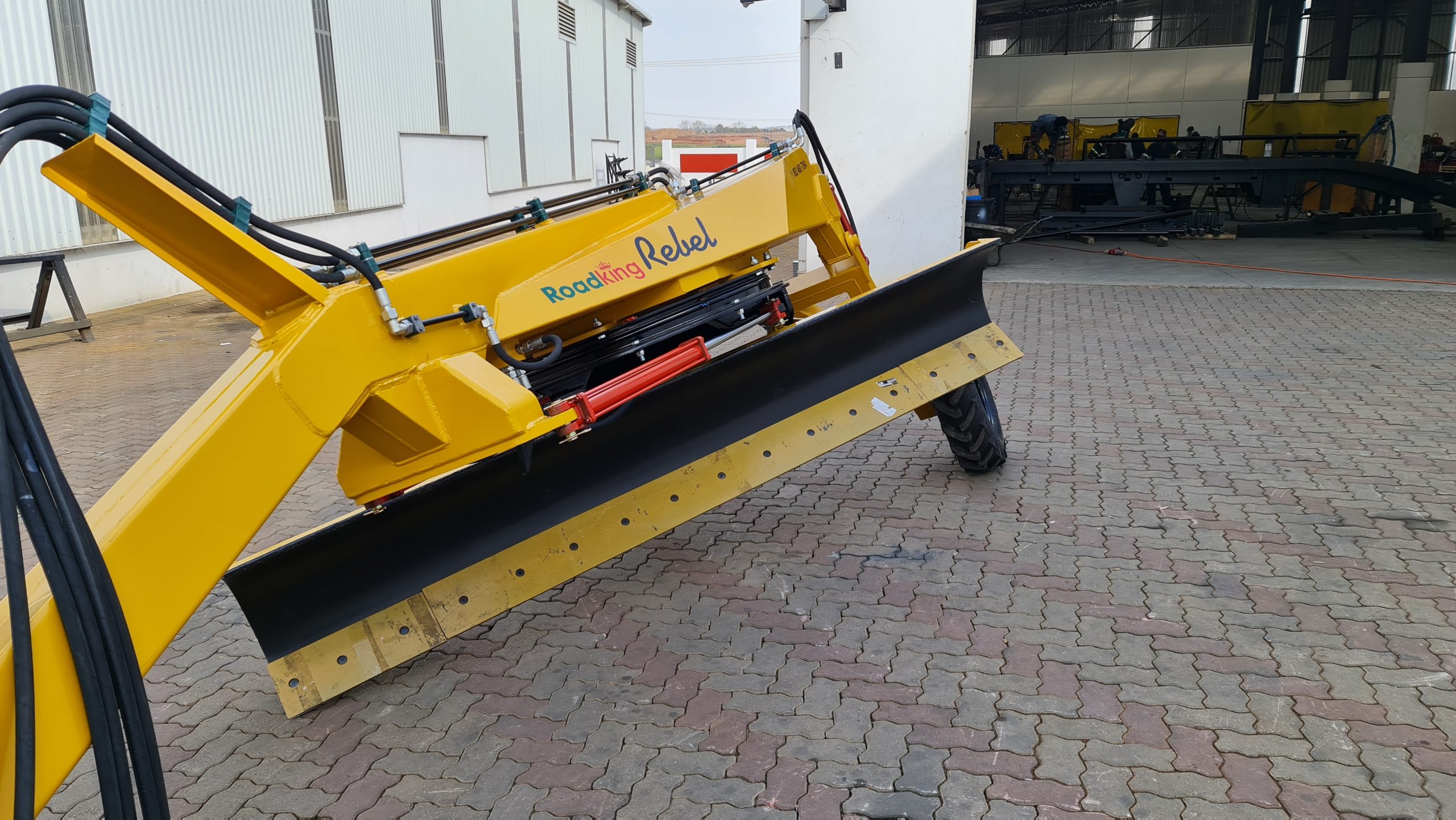

BLADE: 3000 mm Rolled 16 mm MSP Mouldboard with ballast box and 20 mm reversible high carbon steel cutting edges.

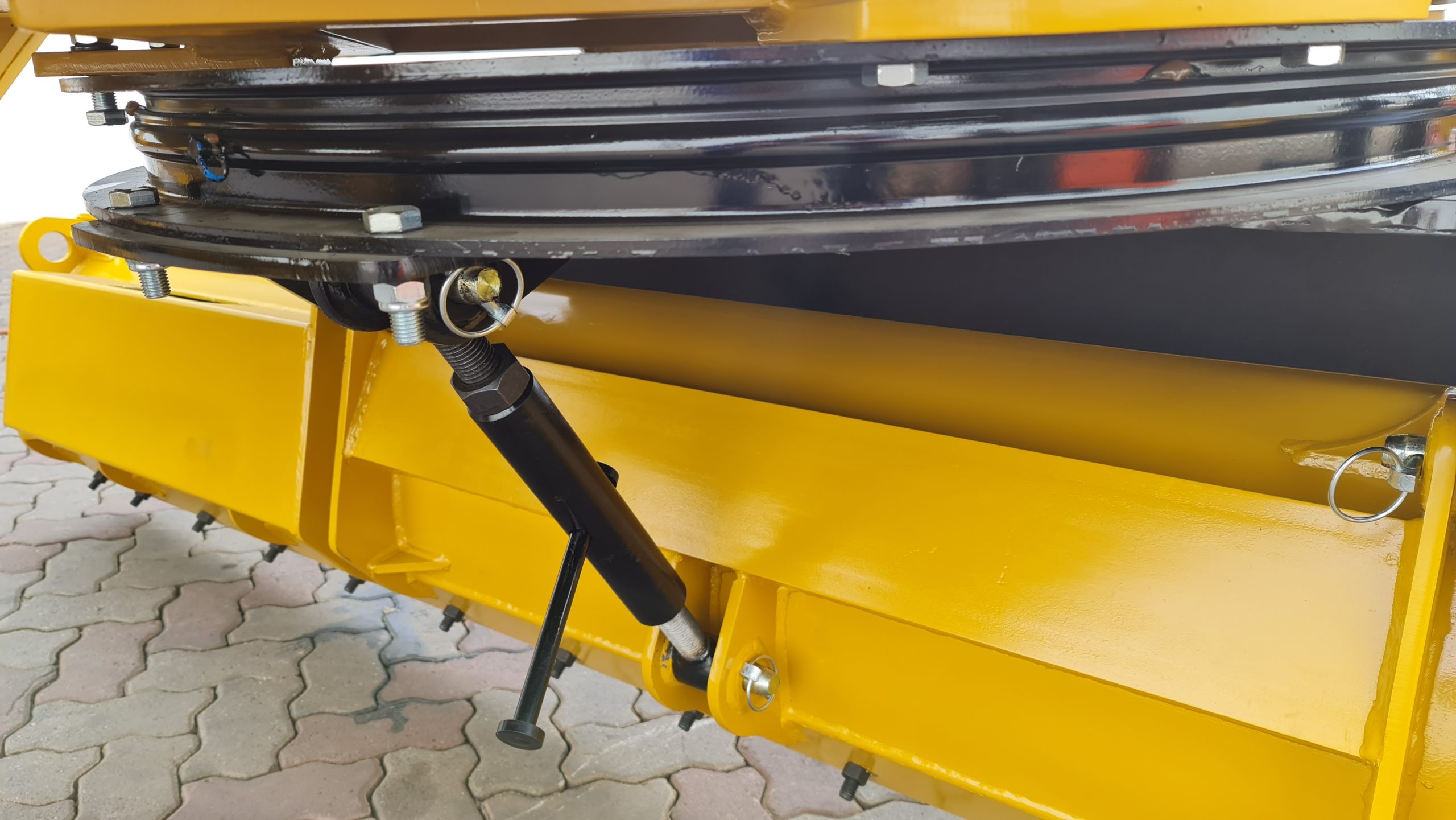

CONTROLS: Remote controlled via direct pipe connection to tow tractor. Hydraulic operated tilt and angle movement and mechanical or hydraulic blade rotation control. Mechanical blade pitch adjustment. NB Hydraulic blade rotation is offered as an option if the tow tractor has sufficient ports to accommodate the additional circuit

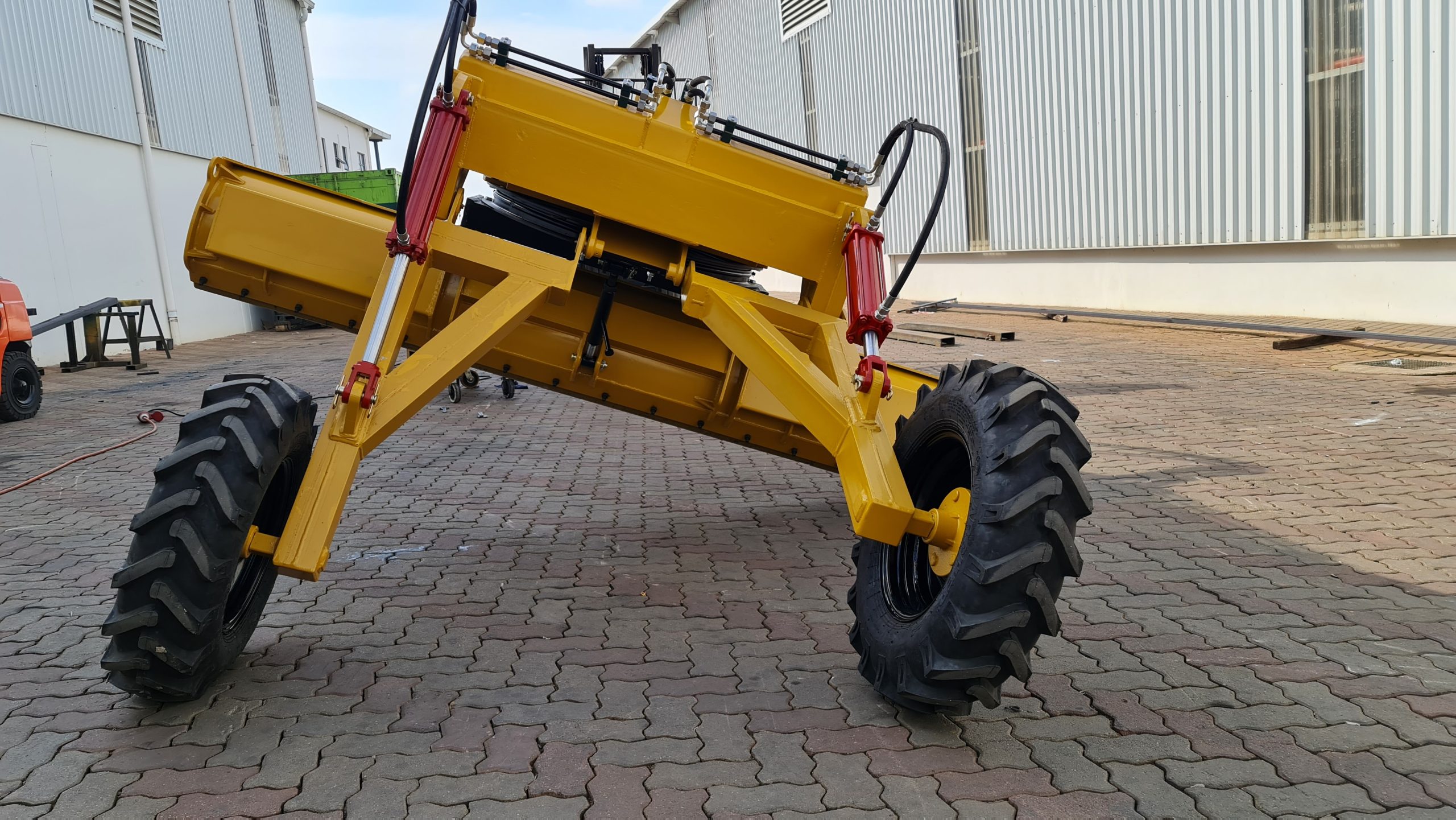

WHEEL EQUIPMENT: 2 x 750 x 16 10-Ply agri-rib tyres on solid beam axle.
HITCH: Height adjustable cradle with 32 mm swiveling DinEye connector
FINISH: All steel chemically cleaned and painted 2 coats Palinel anti corrosion primer and two coats Palinel 2K colour.
